Introduction

Installing a car seat correctly is essential for your baby’s safety. The Chicco KeyFit 30 infant car seat simplifies this task with its user-friendly design and straightforward installation process. This guide provides step-by-step instructions for installing the Chicco KeyFit 30, both with and without the base. By following these steps, you can ensure your child’s safety and comfort during every car trip.

Why Chicco KeyFit 30?

The Chicco KeyFit 30 is popular among parents for its ease of use and impressive safety features. It is designed to accommodate infants from 4 to 30 pounds and up to 30 inches in height, making it a versatile choice for growing babies. The car seat features a ReclineSure leveling system, RideRight bubble level indicators, and SuperCinch LATCH tightener to help achieve a secure, accurate installation every time. These attributes make the Chicco KeyFit 30 a reliable option for parents seeking both convenience and safety.

chicco keyfit 30 infant car seat installation

Preparing for Installation

Before installing the Chicco KeyFit 30 infant car seat, it’s essential to prepare your vehicle and gather all necessary components. First, review your vehicle’s owner’s manual to understand car seat installation recommendations specific to your vehicle model.

Next, find a suitable location in your car. The middle of the back seat is generally the safest spot as it offers the most protection in case of a collision. Ensure your car is parked on level ground to get an accurate read from the leveling indicators on the car seat base. Gather the Chicco KeyFit 30 car seat, base, and any included accessories such as the newborn insert, which you might need depending on your child’s size.

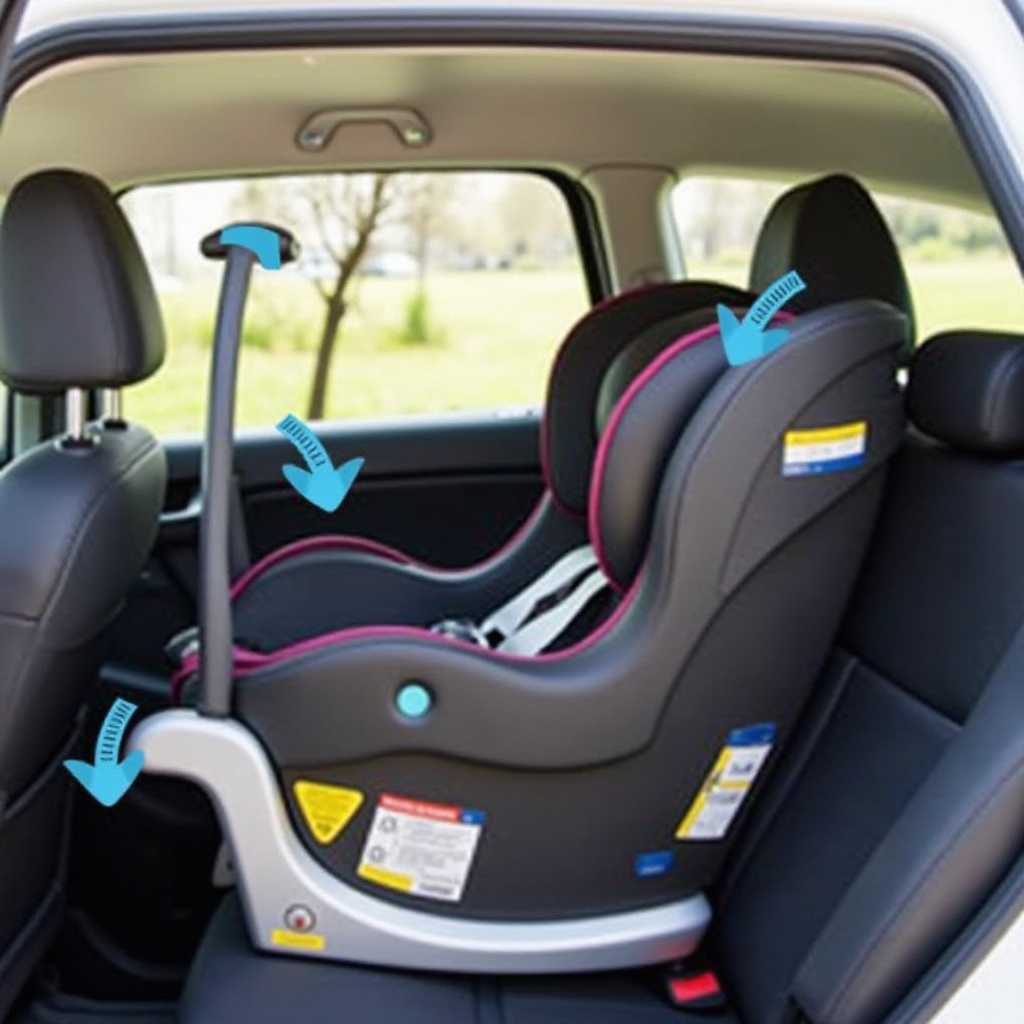

Installing the Car Seat Base

To install the Chicco KeyFit 30 base, follow these steps:

  1. Position the Base: Place the base in the desired seat location in your vehicle. Adjust the ReclineSure foot at the back of the base to achieve the correct level. Check the bubble level indicators on either side of the base to ensure the base is leveled properly.
  2. Attach with LATCH Connectors: Locate the LATCH anchors in your vehicle seat. Connect the LATCH connectors from the car seat base to these anchors. Press down firmly on the base to engage the SuperCinch tightener, removing slack and ensuring a tight fit.
  3. Check Level Indicators: Verify that the bubble levels are even, confirming that the base is at the correct angle. Adjust if necessary.
  4. Install with Seat Belt (if preferred): If using the seat belt for installation, feed the seat belt through the belt path on the base, buckle it, and remove slack by pulling tightly. Lock the seat belt to prevent unwanted movement.

Once installed, firmly push the base down and from side to side to ensure it’s secured tightly. The base should not move more than an inch in any direction.

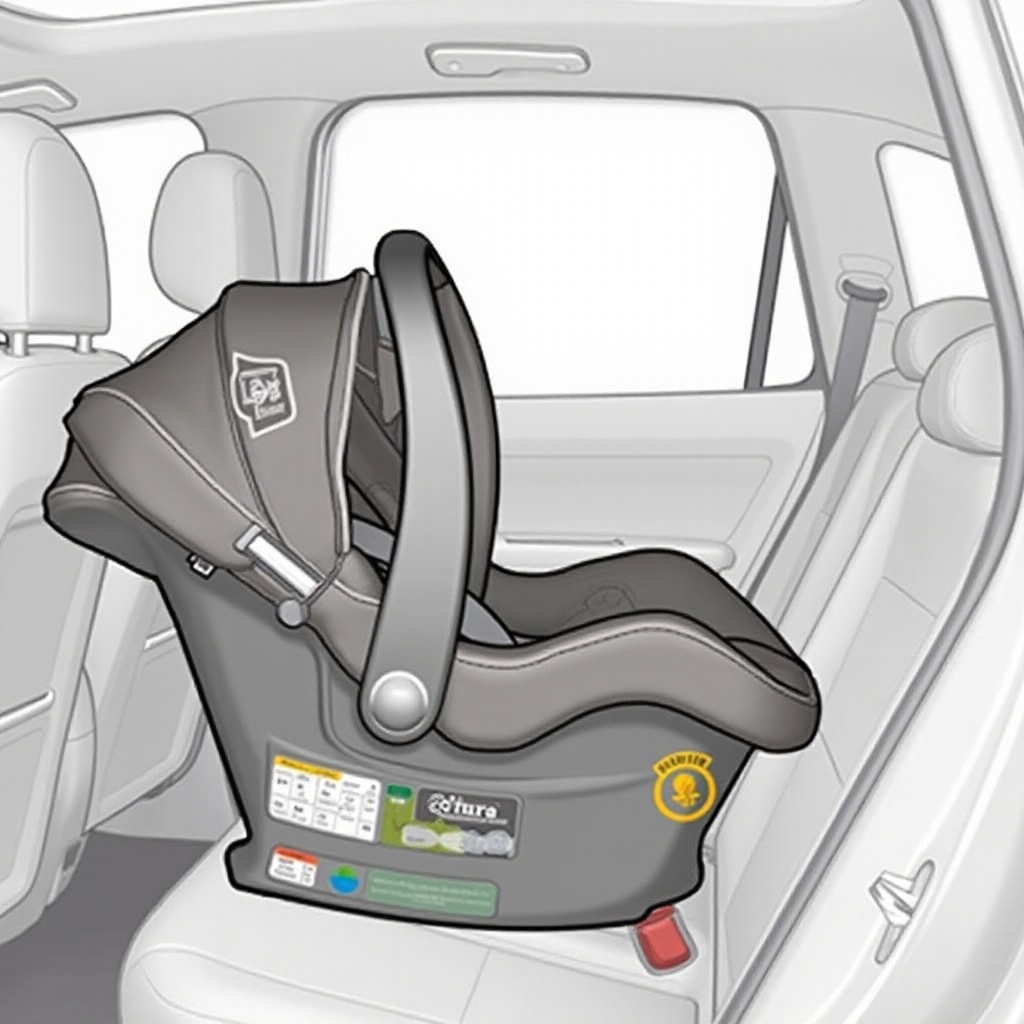

Installing Without the Base

Sometimes, you may need to install the Chicco KeyFit 30 without the base, such as when using a taxi or a friend’s car. Follow these steps:

  1. Position the Car Seat: Place the seat rear-facing in the back seat, ensuring it’s at the correct angle for your infant’s age and weight. Utilize the ReclineSure indicators to verify the correct angle.
  2. Route the Seat Belt: Thread the vehicle’s seat belt through the clearly marked belt path on the car seat. There is a blue belt path for lap-shoulder belts and a unique path for lap-only belts.
  3. Secure the Belt: Buckle the seat belt and pull it tight to remove any slack. Lock the seat belt by pulling it all the way out, allowing it to retract snugly.
  4. Check for Movement: Firmly press the car seat into the vehicle seat and move it side to side and front to back. The seat should not move more than an inch in either direction.

Installing the car seat without the base may take a bit more effort, but with careful attention to detail, you can achieve a safe installation.

Common Installation Mistakes and How to Avoid Them

Correctly installing a car seat is vital for your child’s safety. Here are some common mistakes and how to avoid them:

  1. Loose Installation: Ensure the car seat or base doesn’t move more than an inch side to side or front to back. Use the SuperCinch tightener to achieve a snug fit.
  2. Incorrect Angle: Always check the ReclineSure indicators to ensure the seat is at the correct angle. Adjust the foot on the base or the car seat’s angle as needed.
  3. Improper Belt Routing: Follow the clearly marked belt paths on the car seat and base. Ensure the seat belt or LATCH connectors are securely fastened.

By being aware of these common pitfalls, you can avoid installation errors that might compromise your child’s safety.

Final Safety Checks

After installing the car seat, perform final safety checks:

  1. Inspect Buckles and Straps: Ensure all buckles and straps are fastened securely. The harness should be snug, with no slack.
  2. Confirm Stability: Press down on the car seat and base. Ensure there is no more than an inch of movement.
  3. Check Angle: Verify the car seat angle using the ReclineSure and bubble level indicators.

These checks are crucial for ensuring the car seat installation is secure and that your child is safe during every ride.

Conclusion

The Chicco KeyFit 30 infant car seat stands out for its user-friendly design and high safety ratings. By carefully following the installation instructions, both with and without the base, you can ensure your baby’s safety and comfort. Regularly auditing your installation for accuracy will give you peace of mind on every journey.

Frequently Asked Questions

Can I install the Chicco KeyFit 30 without the base?

Yes, the Chicco KeyFit 30 can be installed without the base. Place the car seat in the desired position and thread the vehicle’s seat belt through the designated belt paths. Tighten the seat belt and ensure the seat is secure by performing a stability check.

How can I ensure the car seat base is tight enough?

You can ensure the car seat base is tight enough by using the SuperCinch LATCH tightener, which is designed to remove any slack. When installed correctly, the base should not move more than an inch side to side or front to back.

What should I do if the car seat doesn’t fit properly in my vehicle?

If the car seat doesn’t fit properly, check your vehicle’s owner manual and Chicco KeyFit 30 manual for specific fitment recommendations. You may need to adjust the ReclineSure foot or use a different seat within the vehicle. If issues persist, seek assistance from a certified car seat technician.
